The electric transmission world is filled with nuances, especially when it comes to how we rate equipment for operational conditions. This post dives into how PJM Interconnection (PJM), the regional transmission organization that operates the grid in the Mid-Atlantic—defines ratings and how those compare to utility-specific planning ratings, with a particular focus on the distinctions between Normal, Emergency, and Load Dump conditions. We’ll also touch on the physics behind line sag, reactive power, and why 500 kV is really 525 kV.

What Are Ratings and Why Do They Matter?

Utilities assign ratings to transmission lines and equipment to define how much load they can safely carry. These ratings typically fall into three categories:

Rating Type Typical Duration Description
Normal 24 hours Maximum continuous load without degradation or excessive sag.
Emergency 15 minutes to 4 hours Allows temporary overloading before reaching thermal limits.
Load Dump Up to 15 minutes Applied during extreme conditions to prevent system failure, may cause immediate degradation.
So, what about PJM? PJM enforces a 3% margin rule: the Load Dump rating must be at least 3% higher than the Emergency rating to give operators a brief window to act before automated shedding kicks in.

The Physics Behind Line Rating

Heat, Resistance, and Sag

Heat buildup in a conductor is a function of current and resistance, not voltage. Think of an electric stove where current flows through a high-resistance coil to generate heat. Transmission lines operate in the same way.

As wires heat up, they expand and sag. Too much sag risks violating clearance regulations established by FERC or NERC, since high-voltage lines can arc to nearby objects. To stay compliant and safe, utilities often derate lines to limit sag.

The Role of Time in Heating

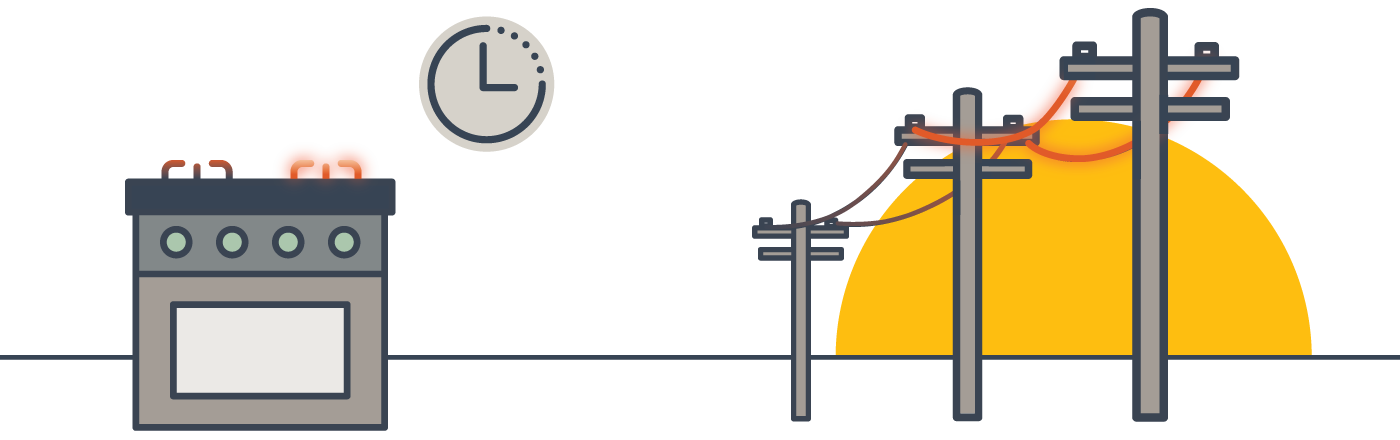

Wires do not instantly heat up. There is a thermal lag, a sort of delayed heating effect. Just like your stovetop takes a few seconds to glow red, power lines take time to reach critical temperatures. That is why we have multiple rating durations: 24-hour, 8-hour, 15-minute, and “Oh S*@#!” ratings, in order of severity.



Voltage: More Than a Number

Voltage does not directly cause heat, but it influences power (Voltage × Current = Power).
Consider this:

120V at 15A = 1800W

240V at 15A = 3600W

Same current, same heat, but double the power. Voltage makes a huge difference in total capacity.

Why 500 kV is Actually 525 kV

All 500 kV equipment is rated for 525 kV. For reasons lost to history, the industry labels it as 500 kV anyway. Unlike other voltage levels, for example 230 kV operating between 218.5 and 241.5 kV, the 500 kV range is broader, usually from 500 to 550 kV. This affects how we apply ratings and the per-unit voltage metrics we use.

The Mystery of Reactive Power

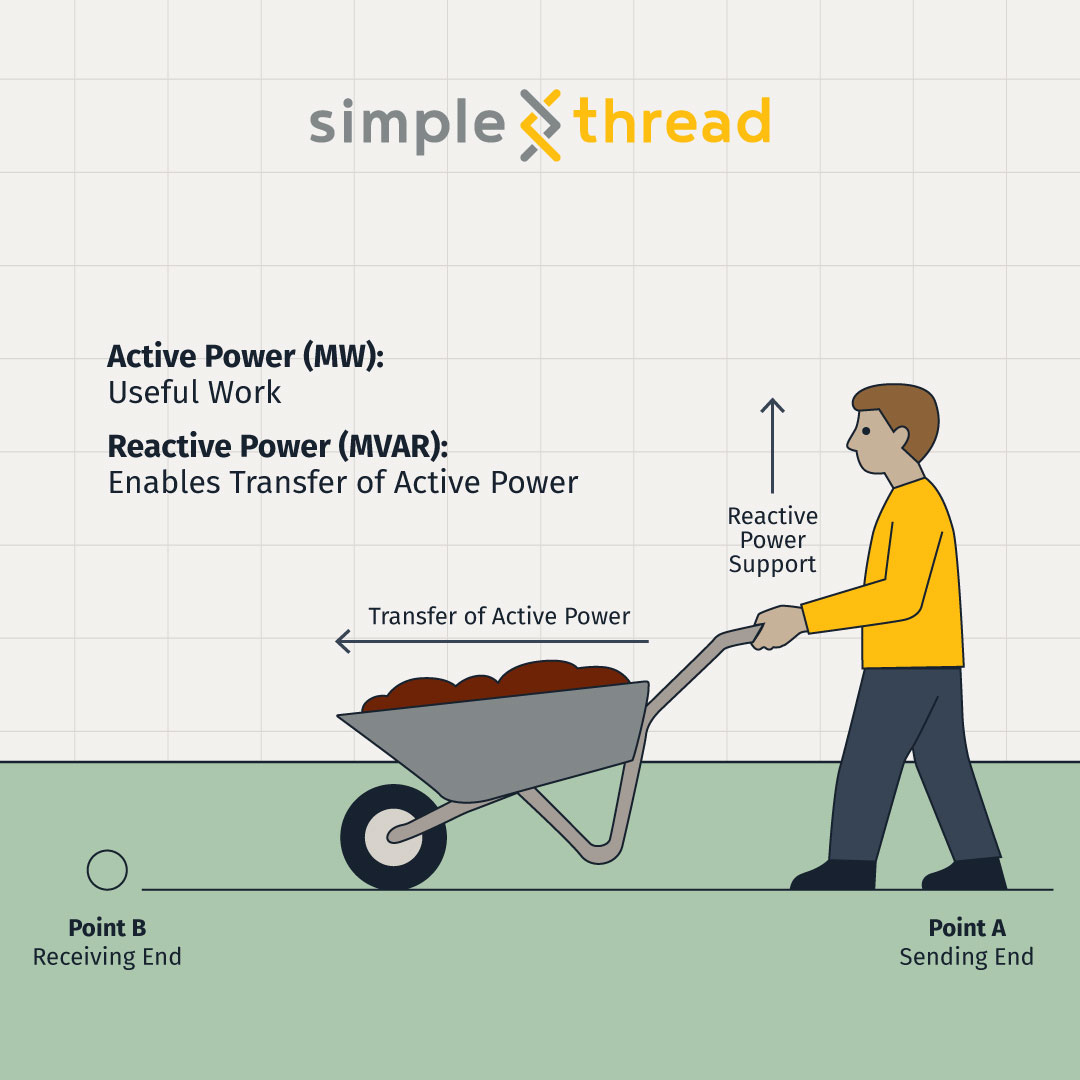

Reactive power, measured in VARs, does not get “used up” like real power (MW), but it still flows through the system, supporting voltage and powering inductive loads like motors. It must be produced and managed, which is why utilities often compensate with capacitors and reactors. Large consumers also pay for their use of reactive power.

Transformers, being essentially large reactors, are rated in MVA rather than just MW or Amps. This combines both real and reactive components, giving a more holistic measure of capability.

The PJM Rating Pipeline

For a utility within PJM, in the context of facility ratings, every piece of equipment gets a “planning rating,” calculated under multiple conditions:

  • Temperature
  • Operating condition (normal, emergency, load dump)
  • Solar heating (per FERC 881)

FERC 881 drastically increases rating complexity. Each device might now have 300 different ratings instead of 30.

These granular values feed into a container-based structure:

  • Substation equipment, leads, and protection systems roll up to branches
  • Branches form endpoints, which then make up line segments

From there, we derive:

  • Contingency Ratings such as N-1-1
  • PJM Ratings, which include the required 3% buffer

Finally, all ratings are rounded down to ensure conservative, safe values are used in operations. No one wants to risk a catastrophic failure because of a rounding error.

Final Thoughts

Rating transmission infrastructure involves both science and policy. Between physical principles, regulatory requirements, and operational realities, there is a lot to balance. With evolving standards like FERC 881 and growing loads from electrification, understanding the nuances of system ratings becomes more important than ever.

Have thoughts on PJM ratings or want to share how your utility handles Load Dump calculations? Let’s talk.
