I’ve received more feedback via e-mail on SquishIt than on pretty much any other post or project I’ve ever worked on in the past. I appreciate it! Most all of the feedback has been extremely positive, with people thanking me for creating such a great tool. Well, I don’t know how great it is, but people seem to like it!
Anyways, the one complain that I keep hearing over and over again is that I need to create a better guide to using it. And I agree, even though SquishIt is a breeze to use, I still need to provide a better "getting started" document.
But before I start rambling, let’s get on with the tutorial….
Getting Setup With SquishIt
The first thing that you need to do is head over to the SquishIt download page on GitHub and grab the zip file for the latest build of SquishIt. If you want, you could also grab the source and build it from there. Your choice!
The next step is to grab a current ASP.NET or ASP.NET MVC project. You could also create a new one, like I am going to do for this post. I’m first going to create a folder for my project, and inside of that folder I am going to create my usual “src” and “lib” folders, like this:
In the “src” folder I just have my project source, and in my “lib” folder is where I am going to drop any third party libraries that my project uses. Inside of my “lib” folder I am going to create a “SquishIt” folder:

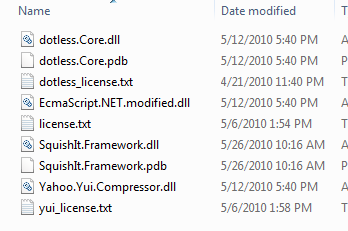

And then put the contents of the zip file I downloaded from GitHub in there:
Now we are ready to get started in our website!
Note: Here I am using a Web Forms project, because I want to show that even though this was originally designed with ASP.NET MVC in mind, it works just the same in Web Forms!
Integrating SquishIt Into Your Website

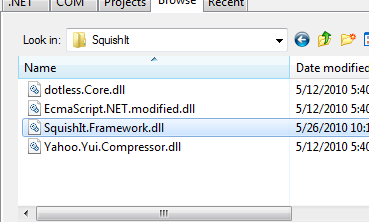

The next thing we need to do is add a reference to the SquishIt.Framework.dll from the web project:
<%@ Import Namespace="SquishIt.Framework" %>
Now we can create a Bundle. A Bundle is a single group of files that will be compressed into a single file. In this first example we are going to create a CSS bundle:
<%= Bundle.Css() .Add("~/css/reset.css") .Add("~/css/text.css") .Add("~/css/960.css") .Render("~/css/combined_#.css") %>
In this code we are starting with the Bundle class, and then calling the "Css" method which lets us start a CSS bundle. Next we just call the "Add" method over and over with each file we want to add. Notice that I have put the tildes (~) on the front of each path, SquishIt will automatically expand app relative paths in websites. And finally we call the "Render" method which writes the bundle out to a particular file.
Also notice that we have the "_#" in the output file name. This will cause bundler to render a hash of the file contents into the filename. This allows us to invalidate the file if a change is made to one of our CSS files. If you don’t include that in there, then the hash is appended as a querystring parameter. This will also work for invalidating the file, but could cause some caching proxies not to cache the file. On the flip side though, if you keep changing files a lot, you could build up a bunch of combined CSS files in your folder since the file name keeps changing. You’ll have to manually clean them out.
Looks very similar, right? We just do the exact same thing.
WAIT YOU’RE NOT DONE YET!
<%= Bundle.Css() .Add("~/css/reset.css") .Add("~/css/text.css") .Add("~/css/960.css") .ForceRelease() .Render("~/css/combined_#.css") %>
Great! Just remember since SquishIt caches everything, if you make a change like this, you’ll need to restart your site by poking the web.config or some other method.
